An approach to archiving e-mails that makes them manageable, shareable, findable and useful (case study from the Food and Agriculture Organisation of the United Nations)

The Food and Agriculture Organisation (FAO) of the United Nations (UN), with its HQ in Rome,  exists to ‘spearhead international efforts to defeat hunger and build a food-secure world for present and future generations’.

Last week I recorded a podcast with Ian Meldon, a records management consultant working for the FAO,  in which Ian described the approach of FAO to implementing a records management system based around e-mail.

FAO have had a system for managing electronic records for over a decade, and the system has always been based on e-mail.  They recently replaced their old system with a new approach.  The new approach involves:

  • filtering out personal and trivial messages, so that significant messages can be managed and shared
  • providing colleagues with ways of keeping abreast of the work e-mail traffic of team-mates, without those team mates having to copy each other into those e-mails.
  • applying a records classification to significant e-mail messages without asking colleagues to interact with that corporate records classification

The previous records management system at FAO

From the year 2000 FAO had asked colleagues to copy or forward any e-mail needed as a record to the e-mail address of their local registry, where registry staff would file the e-mail in a Microsoft Outlook shared folder structure.    The system worked tolerably well, although compliance with the policy varied from area to area.

One weakness of the previous system was that all the records were kept within the Microsoft Exchange environment. People could only see the records of their local area – there was no possibility of a FAO wide search.  There was no sustainable way of holding and applying retention rules to the records.

Principles behind FAO’s new records management system

When FAO decided to overhaul the records system they based their approach on three principles:

  • Don’t appear to introduce a yet another computer system  FAO have procured and implemented a robust electronic records management system (Filenet from IBM), for use as their repository.  But end-users never need interact directly with the Filenet repository – everything they need to do on the system can be done through the Outlook e-mail client.
  • Don’t ask people to do something they are not already doing The idea was not to ask users to do anything more time consuming than the previous system’s demand that they copy in the registry to significant e-mails.  Under the new system every time a colleague sends an e-mail, a records capture pop-up appears asking them to say whether the e-mail is either a) personal or trivial or b) draft/transitory or c) FAO record.   If an individual selects personal or trivial then the e-mail is sent without going into the records repository.  If the individual selects either draft/transitory or FAO record then they are asked to choose the appropriate ‘team tag’  for the message (the team tag denotes which team they were working for in sending the message). The message then gets sent and a copy is placed in the records repository.  There is also the opportunity to mark a message as confidential if it is work related but there is a need to restrict access to it.

Screen Shot 2013-07-07 at 08.12.03

  • Provide something useful beyond the need to keep records At 10pm every night the system generates a ‘digest’ for each team tag.  The digest is an e-mail that lists and links to all the FAO Record e-mails sent that day and tagged with that team tag.  This means that each morning an individual can see at a glance all the significant e-mails sent by colleagues in their team the previous day.  This has reduced the need for colleagues to ‘copy each other in’ to e-mails.  Furthermore individuals can choose to receive digests from other teams (if they have appropriate permissions).  If a manager oversees six or seven teams they can look at the digest for the six or seven team tags each morning, without needing to be copied into hundreds of e-mails.

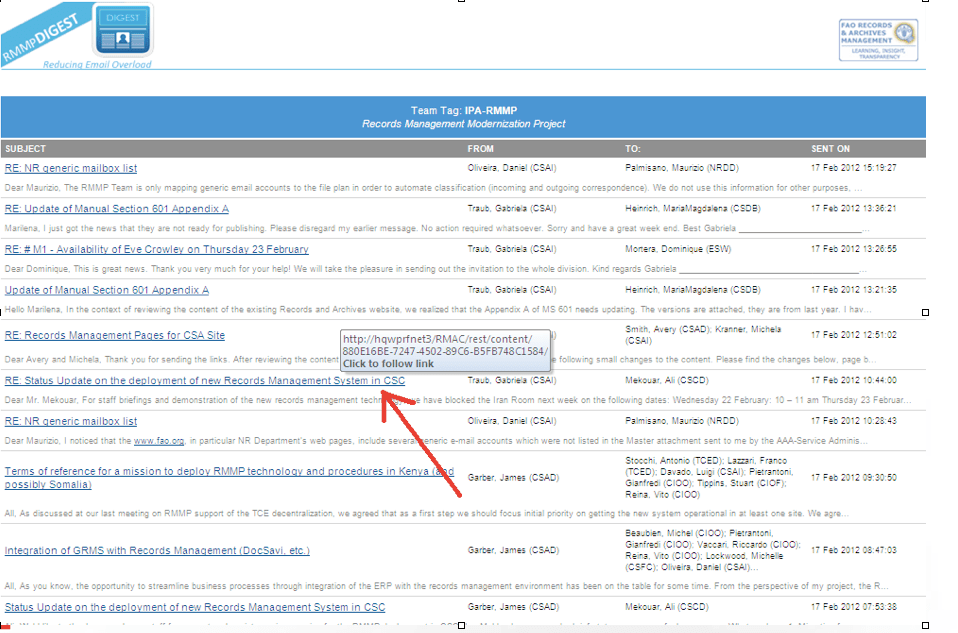

Team tag digest for the Records Management Modernisation Project
Team tag digest for tag ‘IPA-RMMP’ (the Records Management Modernisation Project) on 17 February 2012

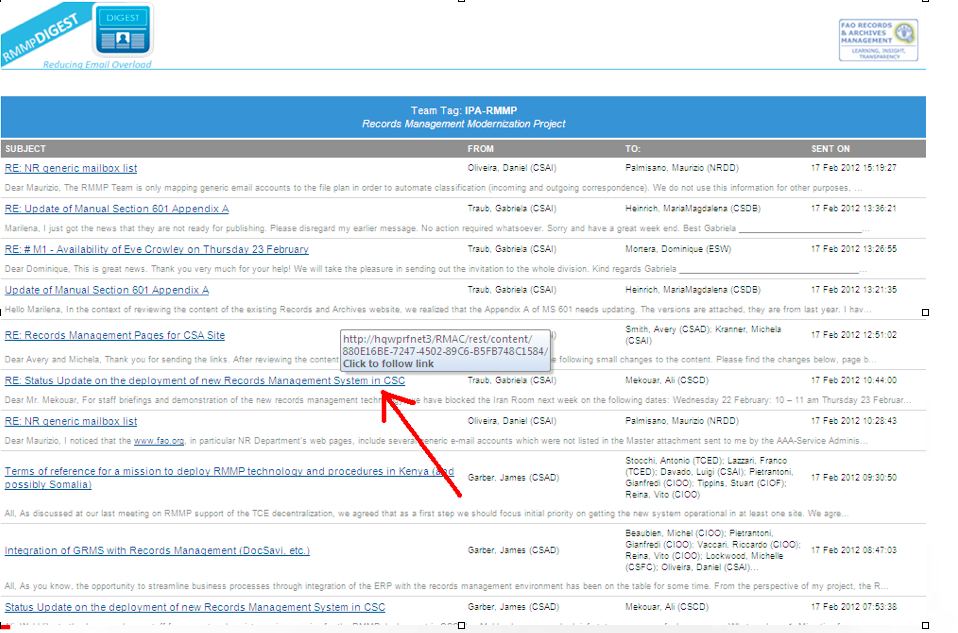

The illustration above shows the team tag digest e-mail generated by the records system for the team tag ‘IPA-RMMP (the Records Management Modernisation Project)  on 17 February 2012.   Members of the team, plus anyone who had decided to subscribe to that team tag, would have received that digest late on the 17 February.  It gives them the subject line and first line of each e-mail.  It is presented in reverse-chronological order by time sent.   The digest is simply an automatically generated search query.   Any colleague can search the records repository from their Outlook client and generate a similar report, showing the FAO Record e-mails of any team over any time period, provided only that they have appropriate permissions for that team tag.

The nature of the team tags

FAO created team tags by simply asking every area of the organisation to identify what teams they had, and who worked in those teams.

Team tags are maintained by registry/records management staff who create new team tags when new teams or project teams emerge, assign individuals to membership of particular team tags, and maintain the access permissions around team tags.

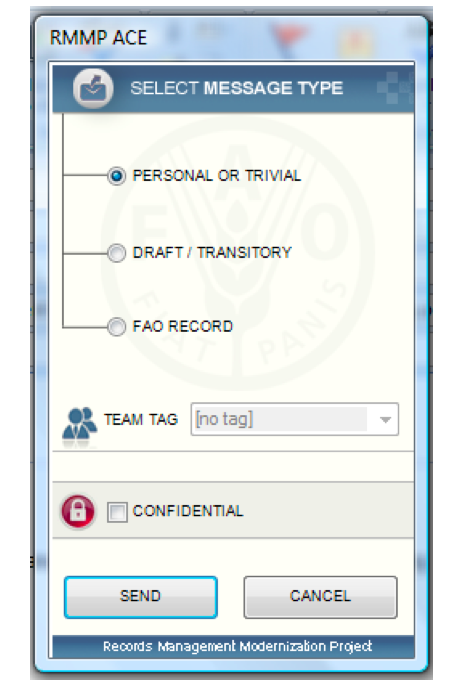

An individual might belong to one, two or several teams.  When they send an e-mail from the Outlook client the records capture pop-up asks them to assign a team tag to it if they have marked it as draft/transitory or FAO record.

The pop-up presents them with a drop-down list of the teams they are assigned to.   If the individual is assigned to only one team then they have no choice to make – the team tag will be filled in automatically.

Application of the record classification

FAO created a records classification based on a functional analysis of the activities of their organisation.

The challenge was how to apply the records classification to the records that would build up in the system.   If FAO had asked individual users to place each e-mail into a file within that records classification then it would have broken their principle of not asking people to do something they were not already doing (in FAO’s previous system registry staff had placed e-mails on files on behalf of end-users).

Experiments with auto-classification

The first approach FAO trialled was auto-classifcation, where an auto-classification tool would allocate e-mails declared as  Draft/transitory and FAO Record  to the appropriate functional classification.

Daniel Oliveira  who worked on the project with Ian, told me that the auto classification worked amazingly well in areas such as the finance where the subject of messages were relatively consistent and predictable,  but it did not work nearly as well in the policy areas where the subjects of messages were unpredictable and unrepeated.   Policy work constitutes a significant proportion of FAO’s work.

Mapping team tags into the functional records classification

The approach they settled on was simply to map the team tags into the functional records classification.   Each team tag is linked to one node in the records classification.

FAO are building up in their repository what is in effect a correspondence record for each team, sortable by sender, recipient and date.   Each of these correspondence records is linked to the functional records classification, from which it can inherit a retention rule.

To my eyes they have struck a neat balance between the strongly individual centric nature of e-mail as it has emerged over the past two decades, and the more collective tradition of files and record keeping.

Access permissions on e-mail

E-mail saved as ‘draft/transitory‘ and ‘FAO Record‘ enters the records repository (FileNet) and inherits its access permission from the team tag, unless it had also been marked as Confidential.  FAO encourages teams wherever possible/appropriate to authorise all FAO staff to access the e-mails tagged with their team tag.

Teams are able to set a different access permission for ”draft/transitory‘ than for ‘FAO Record‘ if they wish to make a distinction.

How FAO deals with incoming e-mail

When FAO colleagues go to send an e-mail,   a records capture pop-up intervenes to prompt them to capture the e-mail to the records repository if it has some significance.

However when colleagues receive an e-mail there is no such opportunity to intervene with a pop-up.

FAO provide staff with two alternative ways of capturing incoming e-mails as records:

  • Treating an incoming e-mail in the same way as any reply made to it –  when a colleague goes to send a reply to the e-mail the records capture pop-up intervenes – if they indicate that the reply is FAO Record (or draft/transitory) then not only the reply, but also the incoming e-mail that prompted it, will be captured into the repository
  • Right click menu option – colleagues can select a message in their inbox and use the right click menu to capture it into the record repository and give it a team tag

How FAO deal with e-mail sent from mobile devices

There is a trend for colleagues to access e-mail via mobile devices such as smartphones and tablets. These devices do not have the extended Outlook client with the FAO records capture pop up.  There are too many varieties of smartphones/tablets out there for it be feasible for  FAO to develop a customised  e-mail client for each device.

FAO have given staff a generic e-mail address that they can copy e-mails sent from their mobile devices into.   Staff working in the Registries capture those e-mails into the system and give them the appropriate team tag.

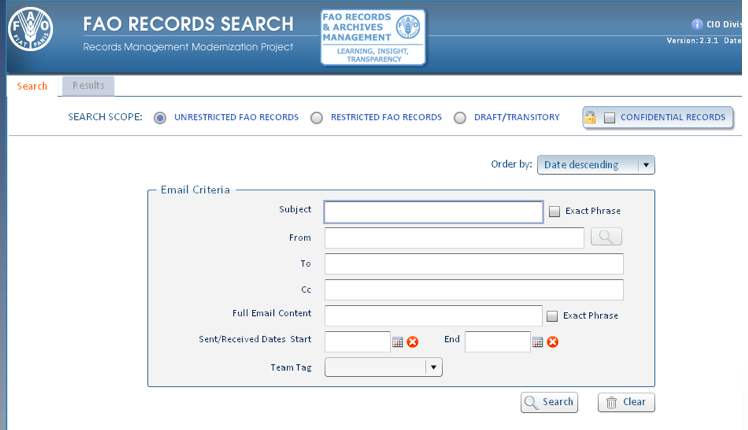

Searching for e-mail

The search facility for the records system is built into the Outlook e-mail client.

To my eyes the search looks more intuitive than the advanced search in a typical electronic records management system.  This is because the metadata of e-mail (from/to/cc/subject/date) is simpler, more standardised and more intuitive than the metadata collected from end users in document profiles by electronic management systems.

This search allows people to specify a date range they are interested in, and to generate what is in effect a report of all the working e-mail sent/received by a particular individual or team within that date range (assuming they are in the appropriate permissions group)

Screen Shot 2013-07-07 at 23.43.25


There are six aspects to the FAO approach  that I find particularly valuable and interesting:

  • They haven’t tried to fight e-mail they have not tried to get users to move e-mail out of the e-mail environment and into an environment that works on a completely different logic (the logic of a folder structure/ fileplan hierarchy)
  • They have used the strengths of e-mail  – the fact that you can intuitively search and/or sort e-mail  by sender/date/recipient and title;  the fact that you have the context of who a document/messages was communicated to and when; the fact that colleagues spend most of their computer time in the e-mail environment; the fact that any document of any significance in environments such as the shared drive will pass through e-mail
  • They have mitigated the main weakness of e-mail  – the fact that trivial and personal messages sit cheek-by-jowl with work messages and make it problematic to provide access to the e-mail of colleagues
  • They have paid as much attention into making sure that the records  function as a useful information and news source for colleagues, as they have paid to making sure people contribute records to the system
  • Their approach does not depend on any particular proprietary software.  They have used a proprietary electronic records management system as their repository for the e-mail, but  they could have used any one of a number of different electronic records management systems and achieved similar results.  The customisation of the e-mail environment was done by their in-house development team.  Their approach does not depend on clever algorithms or sophisticated auto-classification rule engines.
  • They have moved away from files and filing,  but still group records into meaningful and manageable aggregations  Records are accumulating in manageable aggregations, but these aggregations are slightly different from files we have been used to in old paper filing systems, and the files that we created in  electronic document and records management systems.  Those files attempted to capture the whole story of each particular piece of work.   They depended on teams setting up a new file for every new piece of work that they started.   The nearest equivalent of the file in the FAO set up is the team tag.  But teams have not been required to create/request a new team tag every time they start a new piece of work – they keep the same team tag for all the work they undertake.  The record is in effect a correspondence record of that particular team over a particular time.  This is less granular than a traditional file structure.  But the loss of granularity is compensated for by the ability to sort on sender/recipient and date.

3 thoughts on “An approach to archiving e-mails that makes them manageable, shareable, findable and useful (case study from the Food and Agriculture Organisation of the United Nations)

  1. Thanks James for the excellent summary of the FAO case-study.

    I was fortunate to work with Ian and other colleagues from the design of the system to its implementation. When I look back to the two years that I spent in FAO working on the Records Management Modernisation Project, I immediately associate our work with:

    1 – Innovation. We’ve implemented the RM theory in a different way compared to many other organisations by:
    . re-thinking the design and deployment of the ERM system so that it could be perceived by users and FAO as meaningful and added-value. It was a big challenge to balance theory and practice. We moved away from a traditional RM mind-set (e.g. detailed and complex filing plans and folder structures, heavy manual filing, retention and disposition applied to aggregation of records put in files with over complicated retention rules, retrieval based on folder browsing, etc.) into a high-level and flexible approach (e.g. three levels filing plan, incorporation of the retention and disposition scheduled into the filing plan, longer retention periods to minimize risk, finding instead of filing, automatic filing, etc.).
    . adopting new technological developments that are known and used by people, namely by a new generation of internet users, such as web 2.0 features like the ability to follow other teams and the possibility to tag records.

    2 – Simplicity. We’ve used software that users were already familiar with (MS Outlook). In addition, we’ve developed technology in-house that was simple to use (pop-up for record capture and search embedded in Outlook) and that did not require additional effort to staff. In practice, users were doing recordkeeping for free. They did not have to login into another IT application to register documents. The questions “What is this system for?” or “Why do I have to use it” were easier to deal with.

    3 – Usefulness. We’ve provided new tools that were viewed by users and managers as useful to their daily work. The search and the digest proved to be efficient and adaptable. Moreover, having a corporate repository was a selling point to break silos, promote information sharing, learning and collaboration, and reduce the distance between HQ and field offices. Finally, the team tags and the digest helped reducing the e-mail overload.

    With the previous RM system in FAO we learned some lessons that were very important for the RMMP, particularly:

    1 – The limitations of record capture. The procedure for capturing e-mail was not effective. Many relevant records were never cc’ed to the registry while many other e-mails with no value as records were incorporated into the repository. The former issue became a serious problem with the high turnover of staff.

    2 – The constraints of detailed filing. Filing was a subjective activity done by registry clerks that soon became too specialised for users. In addition, folders grew like mushrooms and users gradually lost interest in the system. It was easier to retrieve documents in shared-drives or pst. files.

    3 – The difficulty to see the big picture (namely in a organisation that considers itself as a knowledge organisation). It was not possible to search beyond local departmental areas. Records were fragmented and duplicated.

    4 – The widespread use of the e-mail system. MS Outlook was a familiar tool used by all staff. It did not require a learning curve compared to other software.

    Regarding again your post, I take the opportunity to add few other considerations:

    1 – the incorporation of the pop-up buttons in the FAO webmail as a toolbar;
    2 – the increased interest of teams in digests of draft / transitory records (which helped reducing e-mail overload and promoted higher transparency);
    3 – the possibility to follow the work of other teams by requesting their daily digest;
    4 – the ability to re-use e-mails directly from the digest;
    5 – the implementation of a quality management system to measure user compliance.

  2. I really enjoyed this post. Thanks. It makes sense to use what you have and work with what people do – not make them fit a mould. The technology should be easy, not the other way around.
